Advertisment luminaires
Console/ suspended/ visible mounting
FF-01; FF-04
|
FF-01 Consola
|
FF-01 Suspendat
|

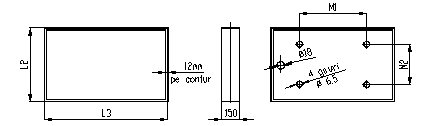

FF-04 pe perete
|
Application:
- - Advertising lighting for suspended mounting, console mounting (FF-01), or wall mounting (FF-04), with one side or two sides
Description:
- - Extruded aluminium profile
- - White PMMA sheet diffuser
- - Electric gear mounted on the profile, manufactured according to relevant standards
- - Suspended mounting for “s” variant, console mounting for “c” variant or wall-mounting with four minimum M6 screws
- - Luminaire manufactured and certified according to IEC 598-1 and SREN 60598-1/1994
General Parameter Table.
Type
|
Code
|
Rated power [W]
|
Power factor
|
Int. Prot.
|
Prot. Class
|
[kg]
|
L1
|
L2
|
L3
|
L4
|
L5
|
L6
|
M
|
FF-01-218c
|
24432011
|
2x18
|
0,5
|
IP44
|
I
|
7,3
|
721
|
661
|
655
|
395
|
401
|
-
|
161
|
FF-01-418c
|
24434011
|
4x18
|
0,5
|
IP44
|
I
|
8
|
721
|
661
|
655
|
655
|
661
|
-
|
421
|
FF-01-618c
|
24436011
|
6x18
|
0,5
|
IP44
|
I
|
10,5
|
721
|
661
|
655
|
915
|
921
|
-
|
701
|
FF-01-818c
|
24438011
|
8x18
|
0,5
|
IP44
|
I
|
14
|
721
|
661
|
655
|
1265
|
1271
|
-
|
1030
|
FF-01-436c
|
24444011
|
4x36
|
0,5
|
IP44
|
I
|
14
|
1331
|
1271
|
1265
|
655
|
661
|
-
|
421
|
FF-01-218s
|
24432013
|
2x18
|
0,5
|
IP44
|
I
|
7,3
|
-
|
661
|
655
|
395
|
401
|
461
|
421
|
FF-01-418s
|
24434013
|
4x18
|
0,5
|
IP44
|
I
|
8,2
|
-
|
661
|
655
|
655
|
661
|
721
|
421
|
FF-01-618s
|
24436013
|
6x18
|
0,5
|
IP44
|
I
|
10,5
|
-
|
661
|
655
|
915
|
921
|
981
|
421
|
FF-01-818s
|
24438013
|
8x18
|
0,5
|
IP44
|
I
|
14
|
-
|
661
|
655
|
1265
|
1271
|
1331
|
421
|
FF-01-436s
|
24444014
|
4x36
|
0,5
|
IP44
|
I
|
14
|
-
|
1271
|
1265
|
655
|
661
|
721
|
1031
|
FF-01-1218s
|
244312213
|
12x18
|
0,5
|
IP44
|
I
|
30,5
|
-
|
1571
|
1645
|
671
|
676
|
736
|
1310
|
FF-01-236s
|
24442013
|
2x36
|
0,5
|
IP44
|
I
|
9
|
-
|
1271
|
1265
|
395
|
401
|
461
|
1031
|
Type
|
Code
|
Rated power [W]
|
Power factor
|
International Protection
|
Protection Class
|
Weight [kg]
|
M1
|
M2
|
L2
|
L3
|
FF-04-118
|
24431041
|
18
|
0,5
|
IP44
|
I
|
7,6
|
394,5
|
134,5
|
401
|
661
|
FF-04-218
|
24432041
|
2x18
|
0,5
|
IP44
|
I
|
9,8
|
394,5
|
344,5
|
661
|
661
|
FF-04-418
|
24434041
|
4x18
|
0,5
|
IP44
|
I
|
11,6
|
654,5
|
394,5
|
661
|
921
|
